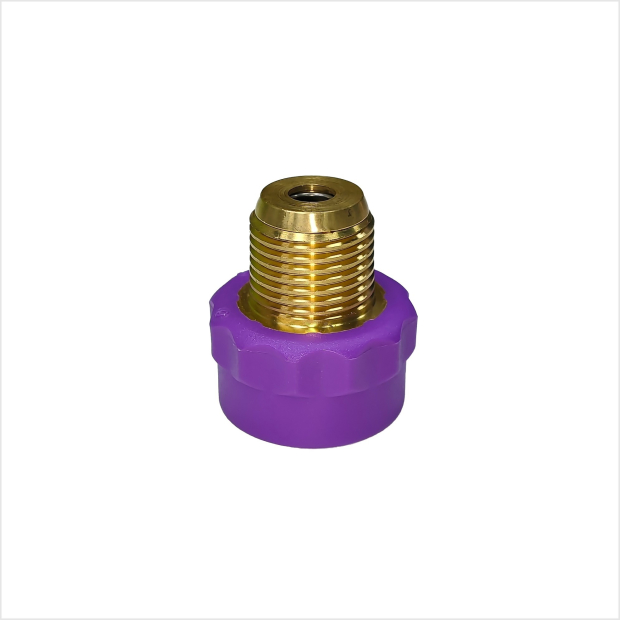

CF-Valve
Material
Body : Copper Alloy / Coating: FRP
Dimensions
L 38mm × W 35mm
Net Weight
73 g
Thread Spec
Inlet 1/2-14 NPT~ Outlet M22*1.5P（CN Std.）* W22*1.5（TW Std.）
Flow Shut-off
—
Position
Pipe outlet
Function
- Prevents gas leakage during installation／ removal
- Pipe connection
- Purely Mechanical Design
Diagram
