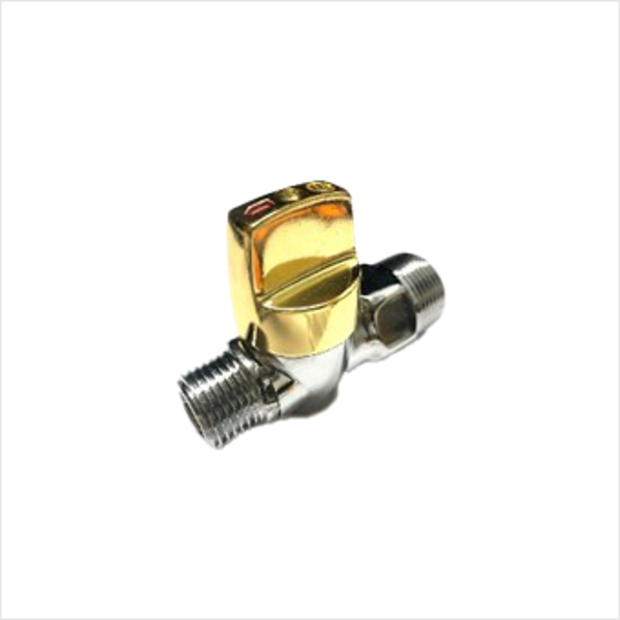

NG-P2
Material
Body: Copper Alloy / Knob: Alloy
Dimensions
L 79mm × W 30mm × H 59mm
Net Weight
1/2 " : 300 g ｜ 3/4 " : 310 g
Thread Spec
• Inlet Thread：1/2-14NPT
• Outlet Thread： 1/2 Male Straight
• Outlet Thread： 1/2 Male Straight
Flow Shut-off
• Inlet 1/2" Thread：1.8, 2.1, 2.5, 3.2, 3.6 Nm³/hr
• Inlet 3/4" Thread：3.6, 5.0, 6.0 Nm³/hr
• Inlet 3/4" Thread：3.6, 5.0, 6.0 Nm³/hr
Position
Pipe Two-way Connection
Function
- Excess Flow Shut-off
- Purely Mechanical Design
- Any-angle Flexible Installation
- Alloy Knob for Quick Reset
- Integrated Copper Alloy Valve Body
- Direct Replacement for Ball Valves
- High-Pressure Ball-Type Valve
Diagram
