LNG
LIQUEFIED NATURAL GAS

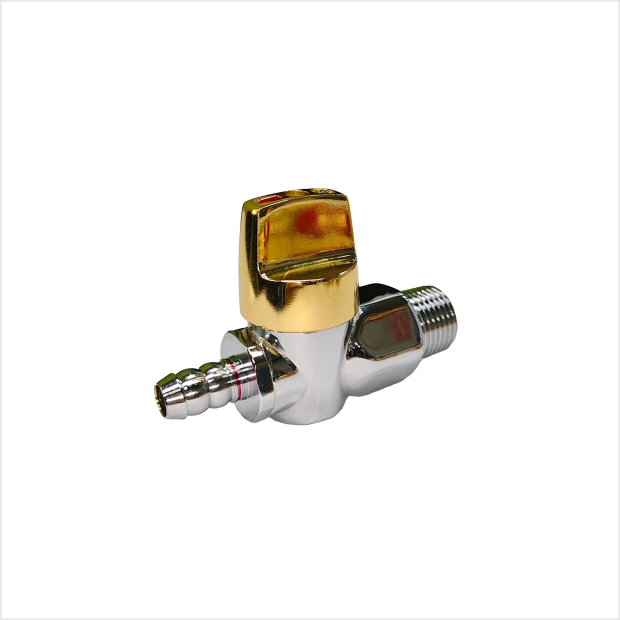

NG-01
Material
Body: Copper Alloy / Knob: Alloy
Dimensions
L 88mm × W 31mm × H 59mm
Net Weight
304 g
Thread Spec
• Inlet：1/2-14NPT , Outlet：Ø11.5mm Hose Barb
• Inlet：3/4 PT , Outlet：Ø16.5J Hose Barb
• Inlet：3/4 PT , Outlet：Ø16.5J Hose Barb
Flow Shut-off
• Inlet 1/2" Thread：1.8, 2.1, 2.5, 3.2, 3.6 Nm³/hr
• Inlet 3/4" Thread：3.6, 5.0, 6.0 Nm³/hr
• Inlet 3/4" Thread：3.6, 5.0, 6.0 Nm³/hr

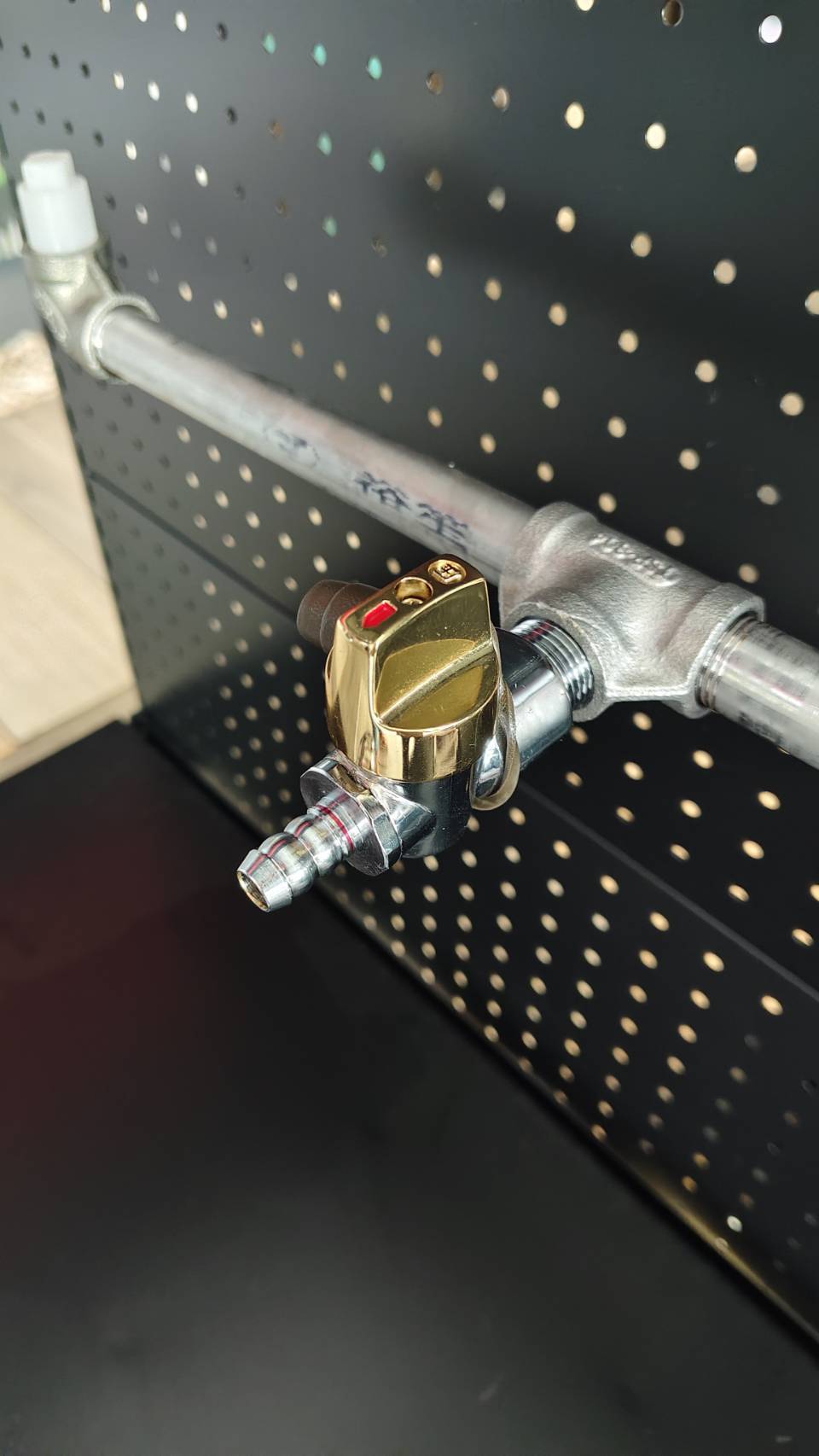

Position
Pipe Outlet
Function
- Excess Flow Shut-off
- Purely Mechanical Design
- Any-angle Flexible Installation
- Alloy Knob for Quick Reset
- Integrated Copper Alloy Valve Body
- Direct Replacement for Ball Valves
- High-Pressure Ball-Type Valve
Diagram
