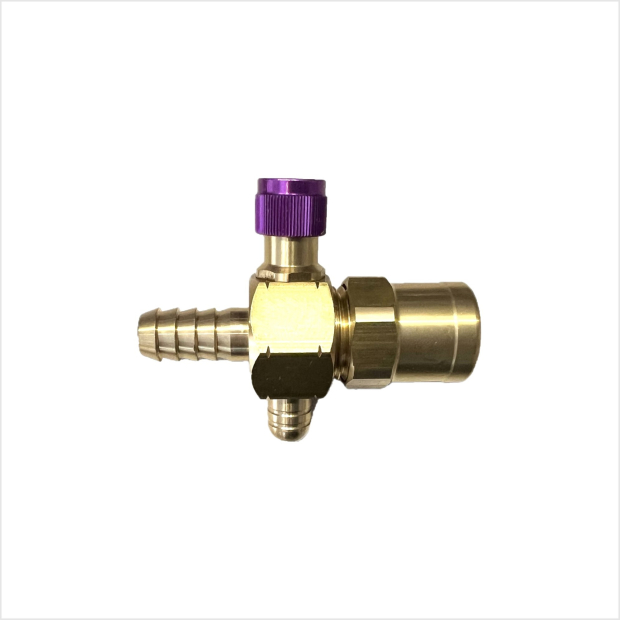

PG-Medium Pressure
(Designed for Commercial Systems)
Material
Body : Copper Alloy / Reset Button: Zinc Alloy
Dimensions
L 70mm × W 29mm × H 57mm
Net Weight
138 g
Thread Spec
• Inlet：Socket (convertible to 1/2" Male Thread)
• Outlet：Ø11.5mm Hose Barb
• Outlet：Ø11.5mm Hose Barb
Flow Shut-off
4-12 Nm3／hr（Micro-adjustable）
Position
Pipe to Hose Connection
Function
- Excess Flow Shut-off
- Purely Mechanical Design
- Multi-Hazard Protection
- Patented Magnetic Precision Sensing
- Integrated Copper Alloy Valve Body
- Any-angle Flexible Installation
- One-Touch Quick Reset
Diagram
